Product Description
|
Item Name
|
Metal Catalyst
|
|
Shell Material
|
444
|
|
Inner Material
|
Iron Soldering Aluminium
|
|
Size
|
Diameter: 20-200mm Length: 20-300mm (Customizable)
|
|
Working Temperature
|
280°C-1100°C
|
|
Shape
|
Cylinder/Rectangle/Square/Runway/Oval/Trapezoidal/Pentagon/Pear-shaped
|
|
Cell Density
|
50-900 CPSI (customizable)
|
|
Application
|
Catalytic Gasoline Particulate Filter
|
|
METAL CARRIER & CATALYST COATING PARAMETERS
金属载体和催化剂涂层参数
|
||
|
Item项目
|
Parameter参数
|
|
|
Shell material
|
316L 304, 44, 441 or as per customer’s requirement
|
|
|
Inner core material
|
FeCr21AL6
|
|
|
Outer diameter of carrier
|
12-960mm
|
|
|
Length
|
9-150mm
|
|
|
CPSI
|
100-800
|
|
|
Wall thickness of shell
|
0.5-3.0mm(without shell is available)
|
|
|
Wall thickness of inner core
|
0.03-0.18mm
|
|
|
The structure of inner core
|
1 core 2 cores 3 cores
|
|
|
Shape option
|
Cylinder/Rectangle/Square/Runway/Oval/Trapezoidal/Pentagon/Pear-shaped
|
|
|
Shape: Other special shapes as per the client’s design.
Type: Spirality series, “S” series, and “SM” series.
Please note:
1. Please avoid using leaded gasoline. 2. Please do not operate at high speed for an extended period (in open-loop control mode). 3. Please avoid fluctuating the engine speed. 4. Please do not ignite too late. 5. It must not be started for prolonged periods. 6. Do not disconnect the high-voltage line for a long time to test ignition. |
||
Introduction

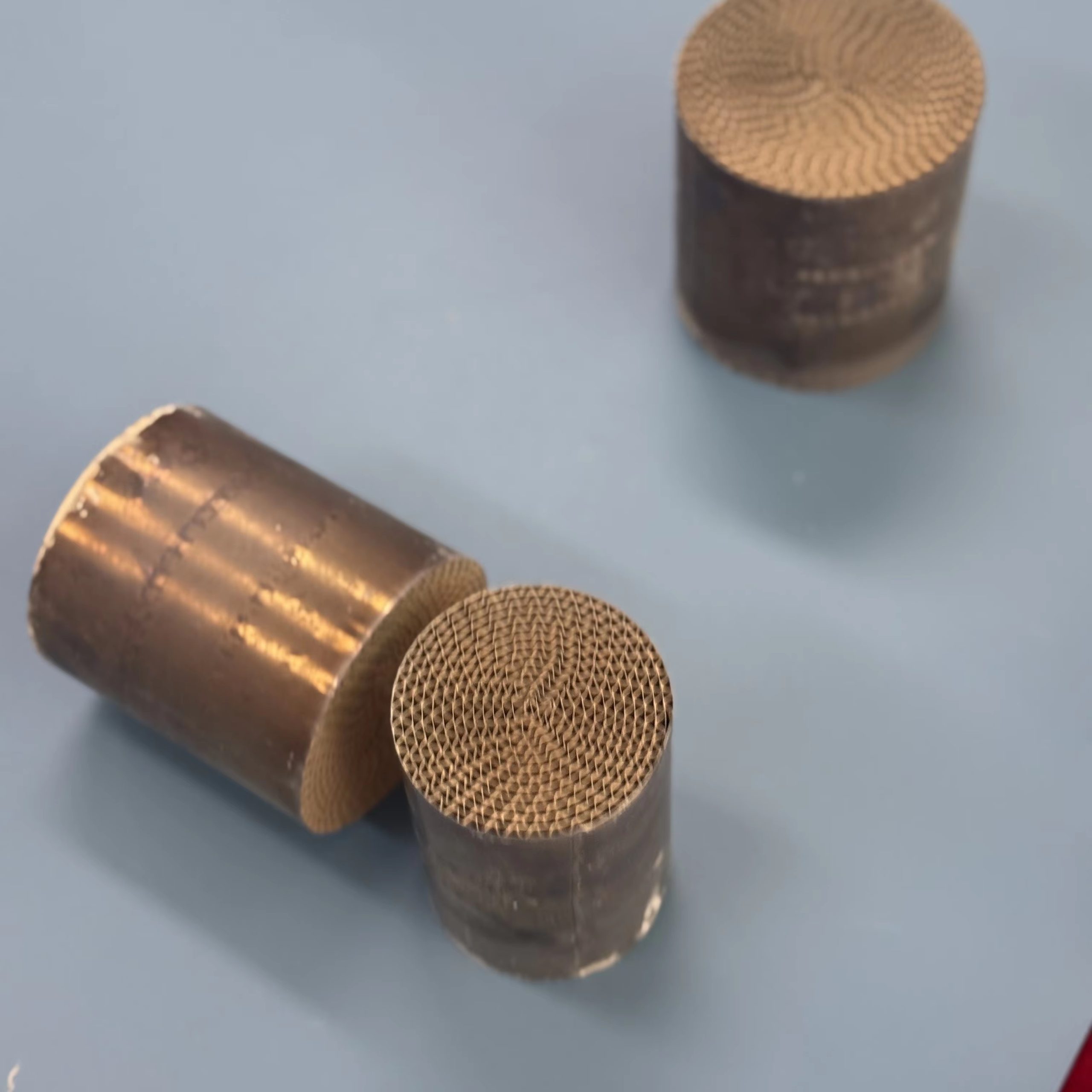

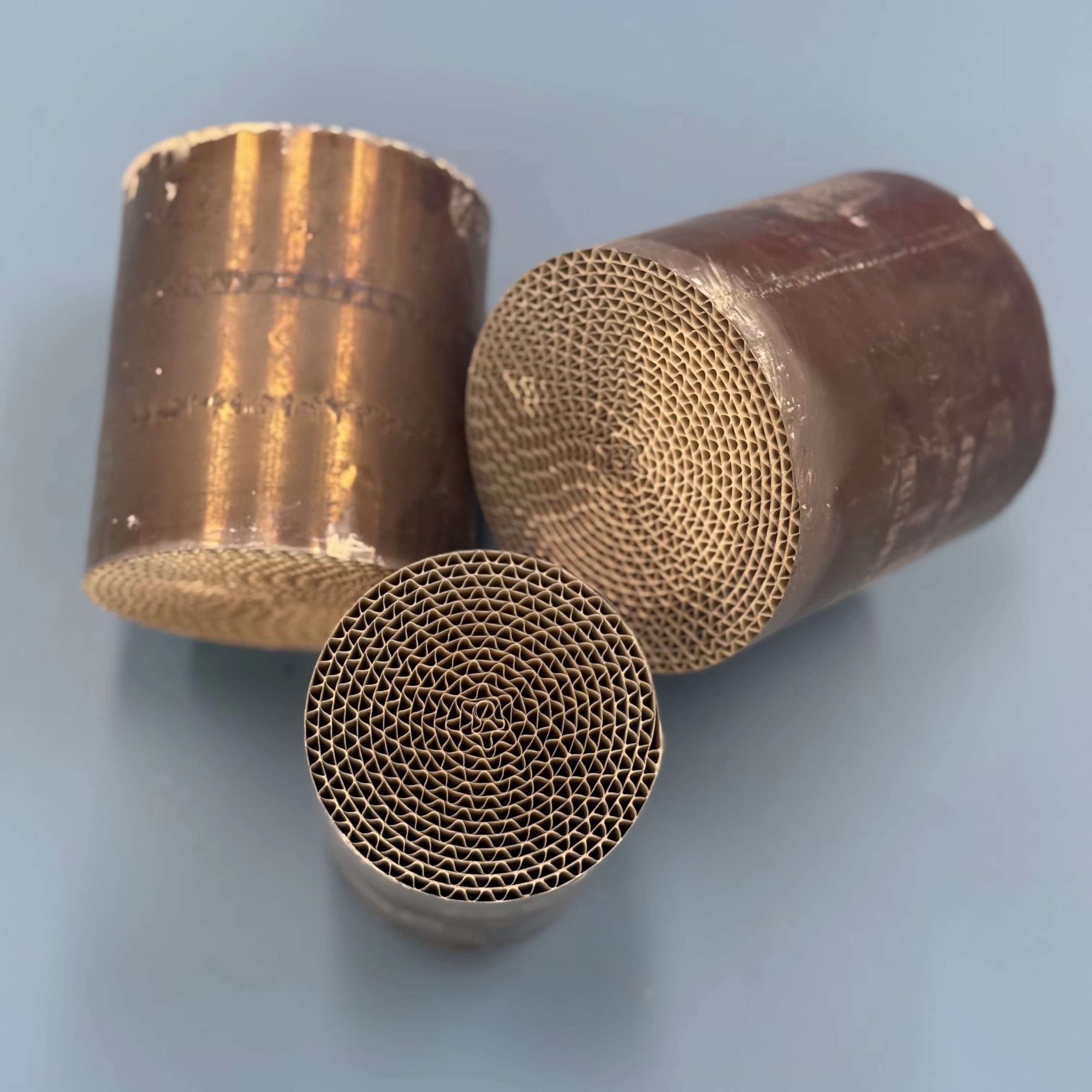

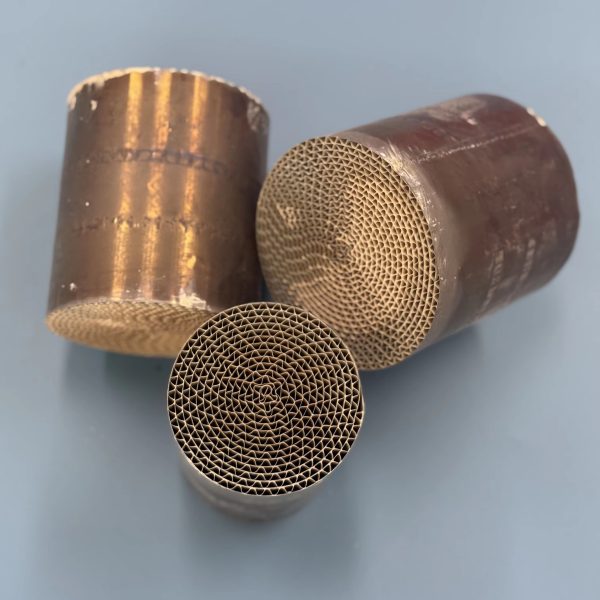

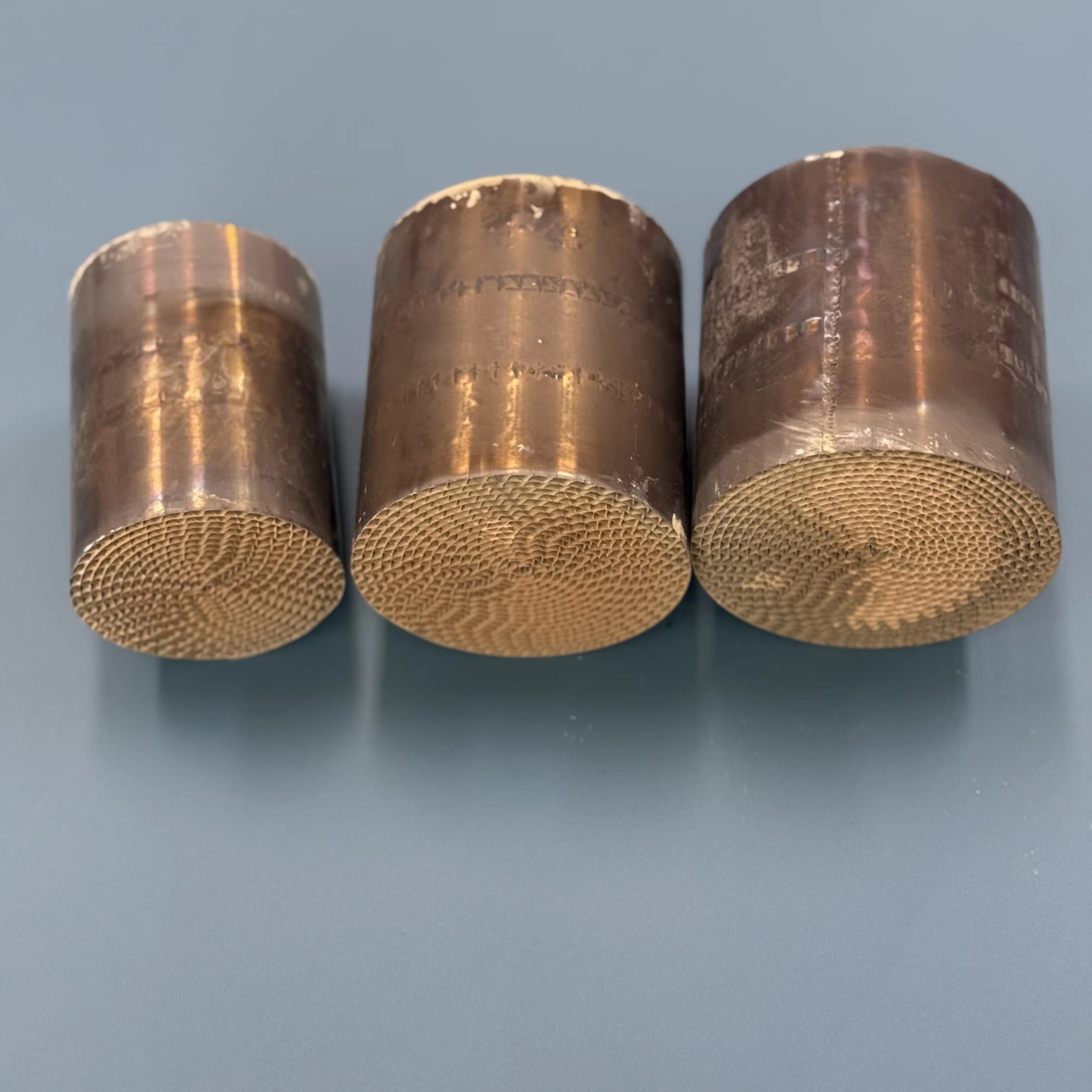

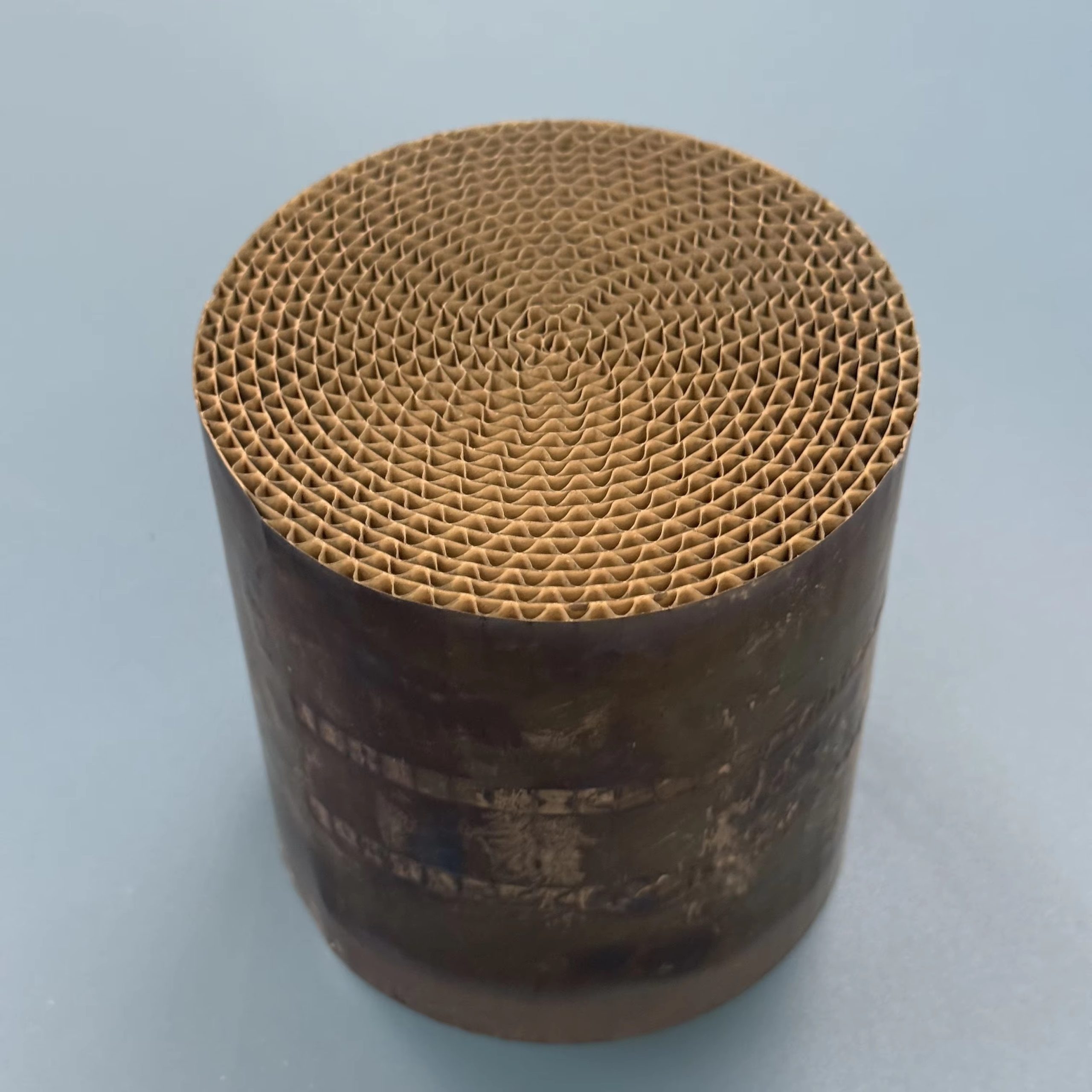

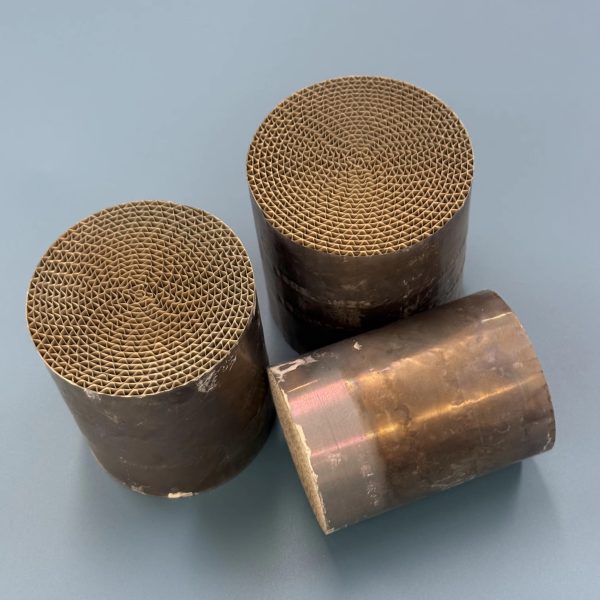

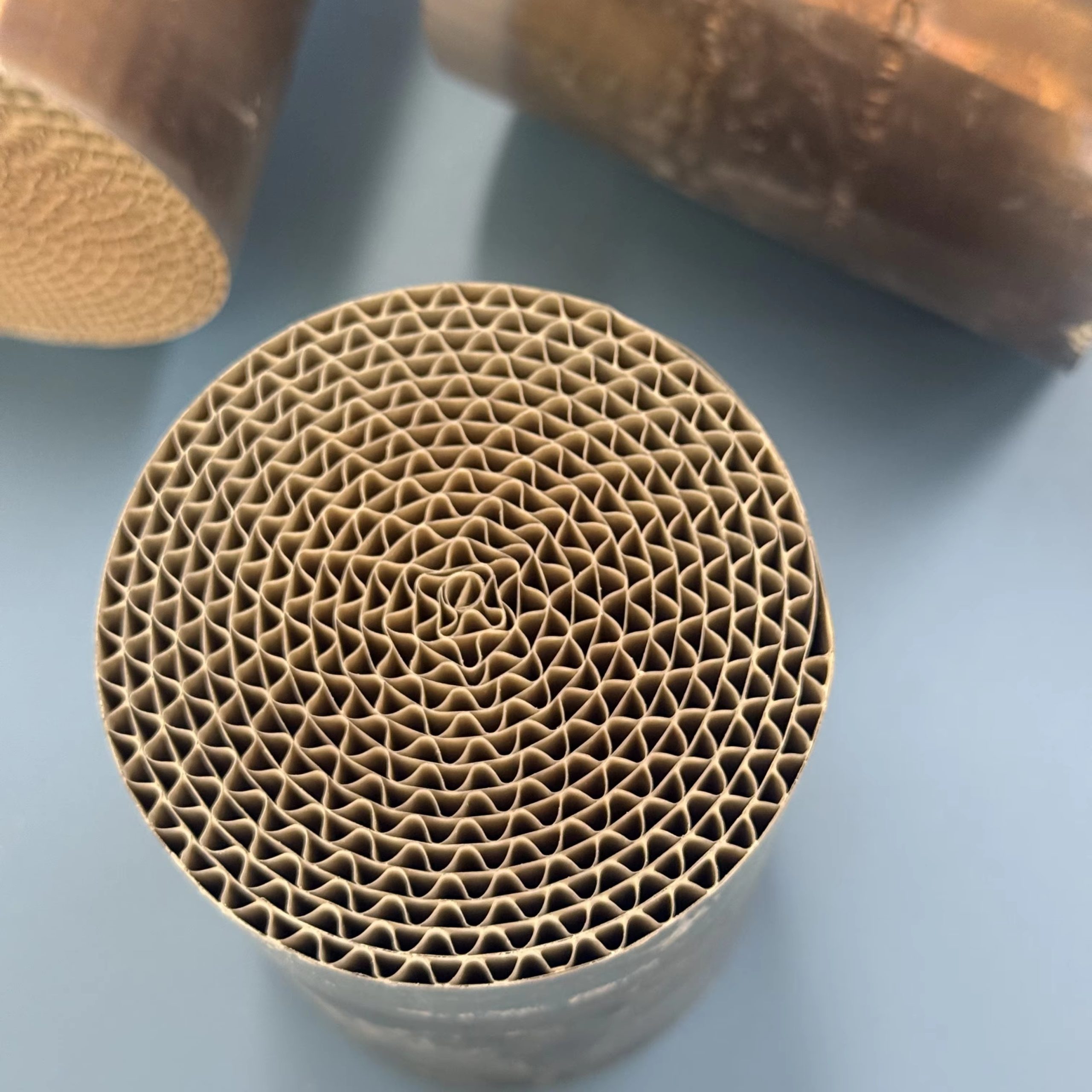

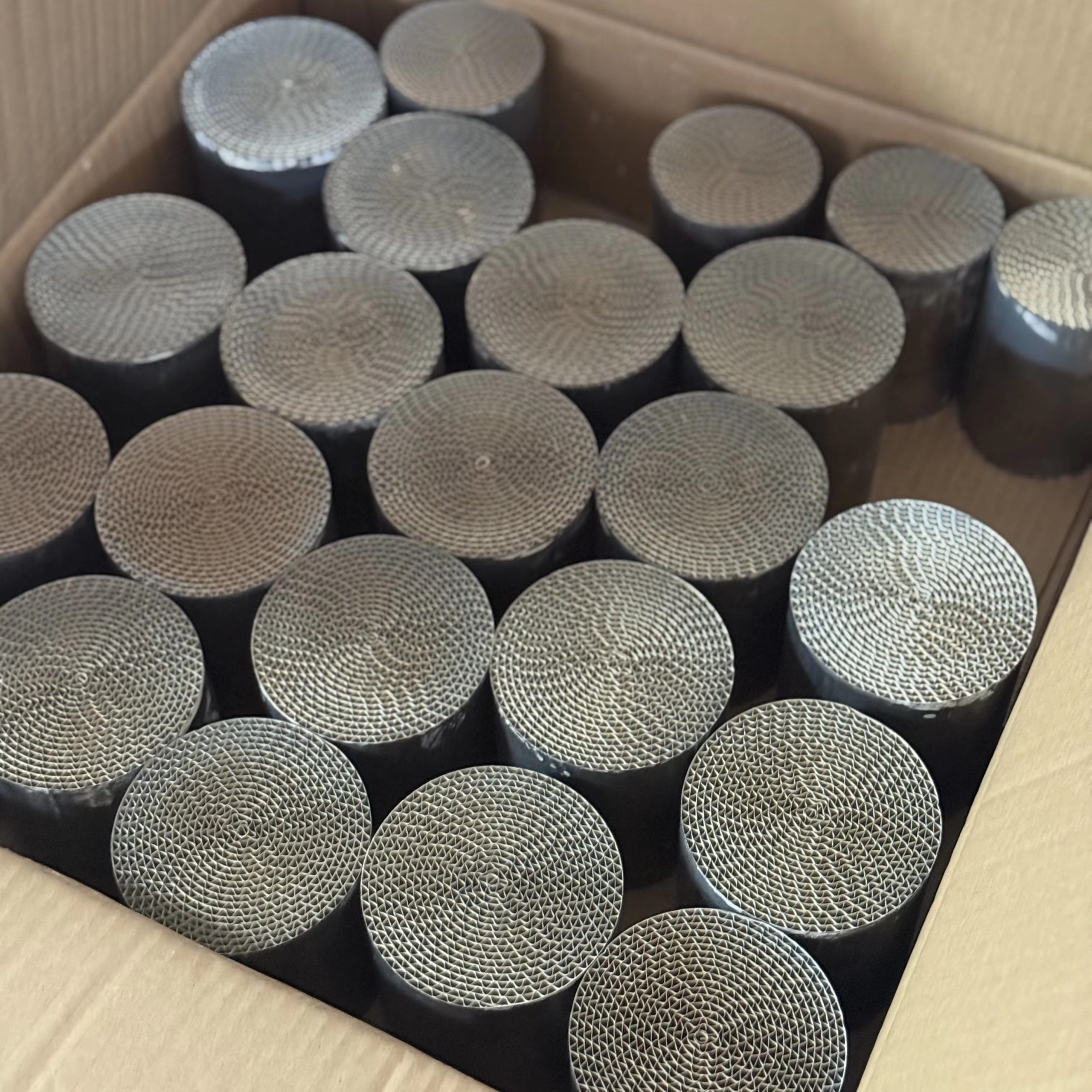

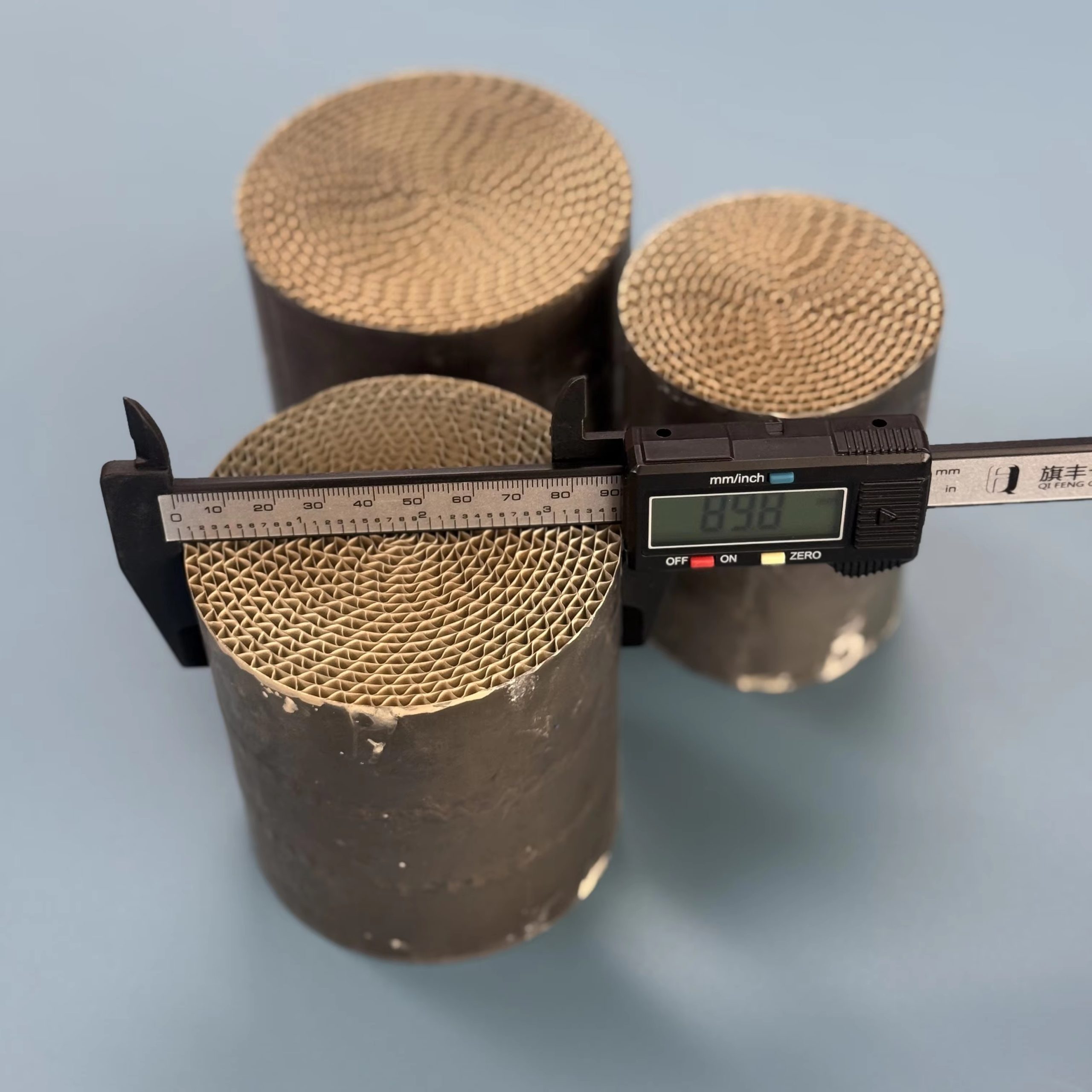

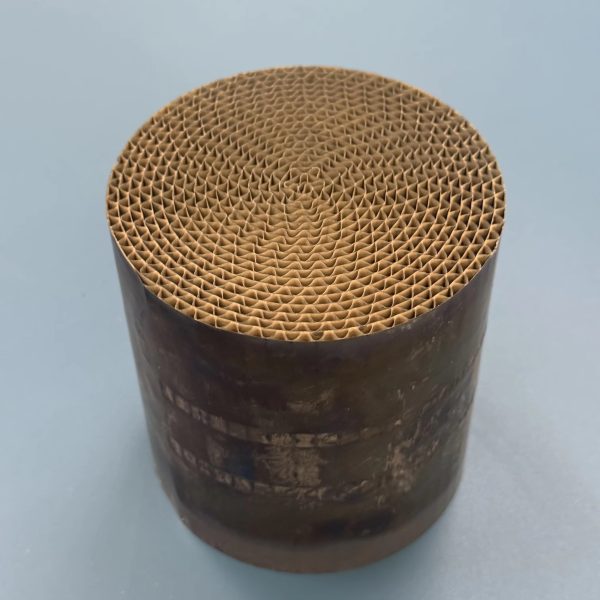

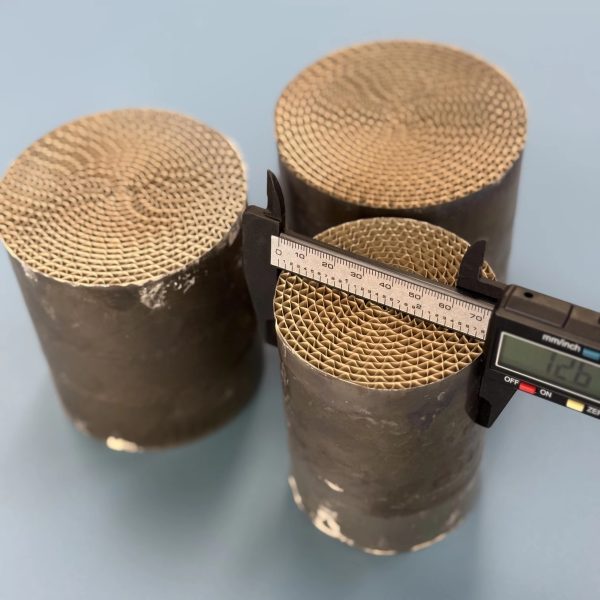

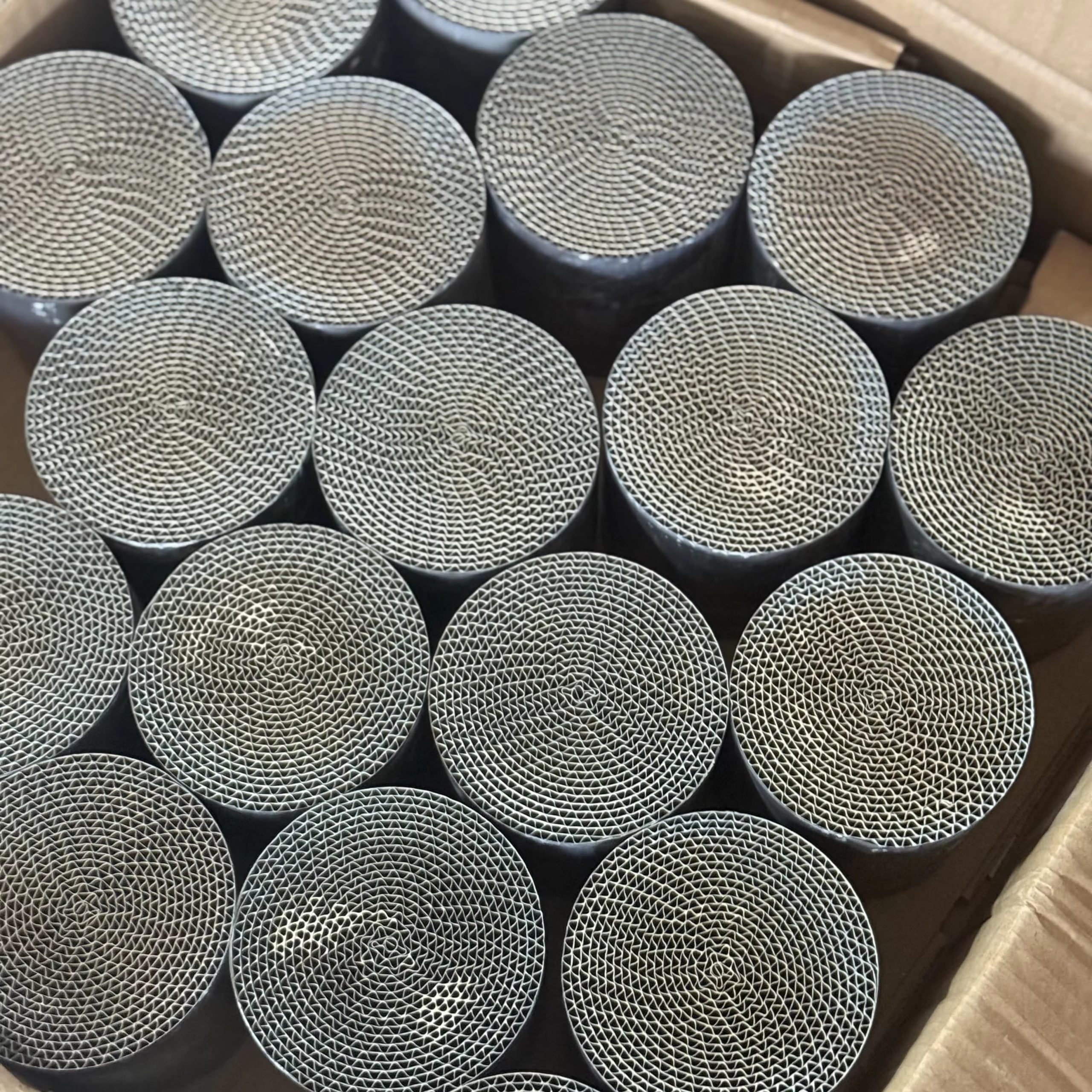

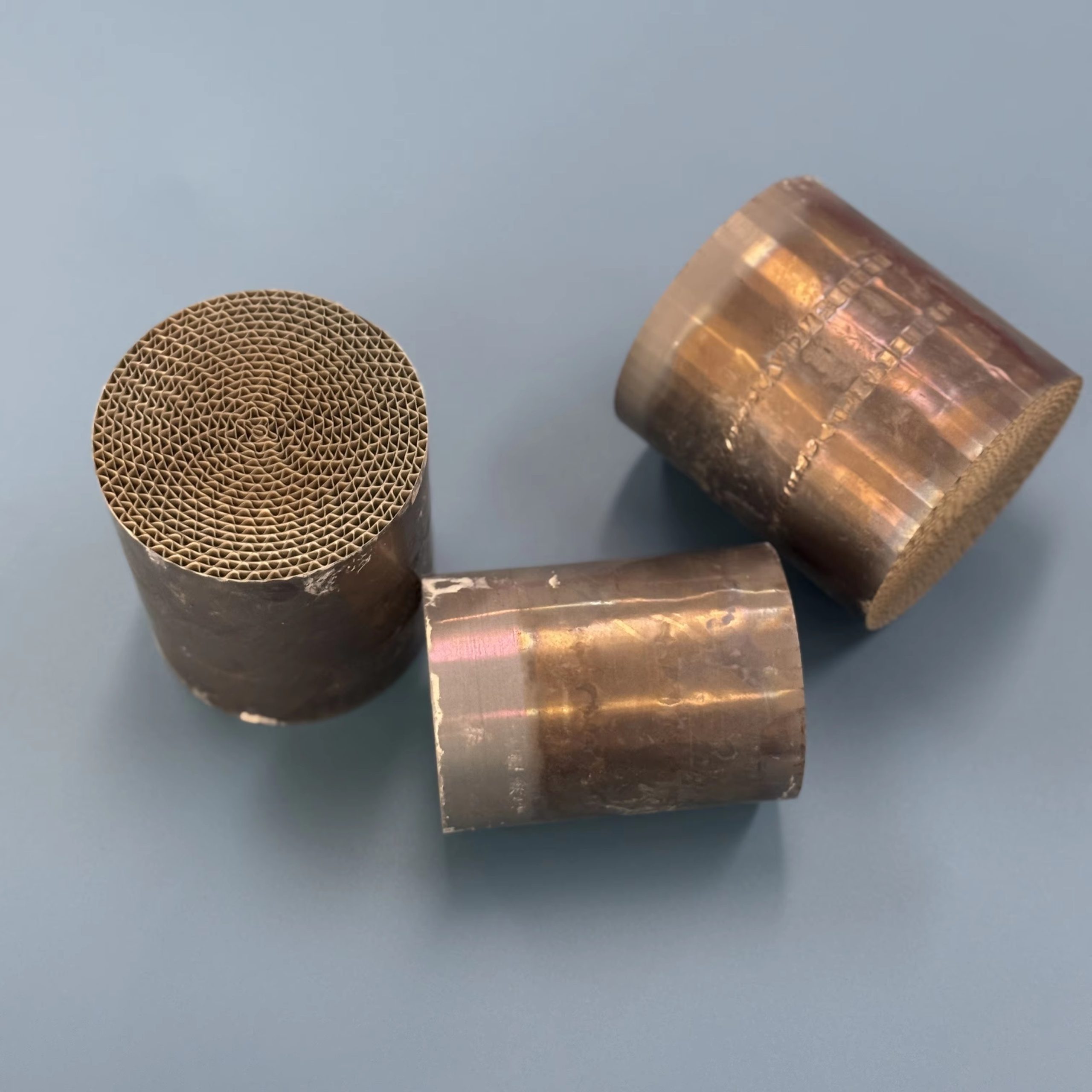

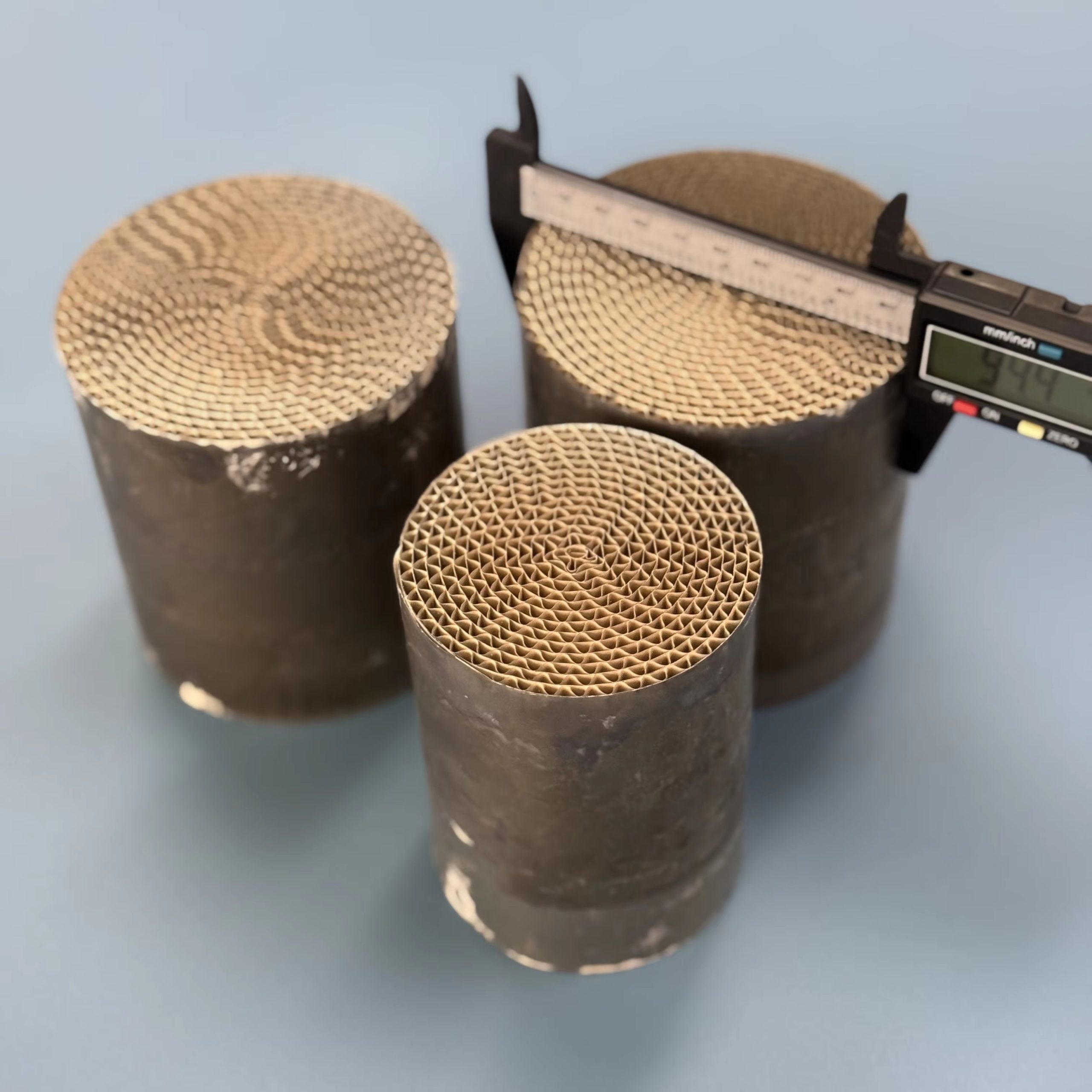

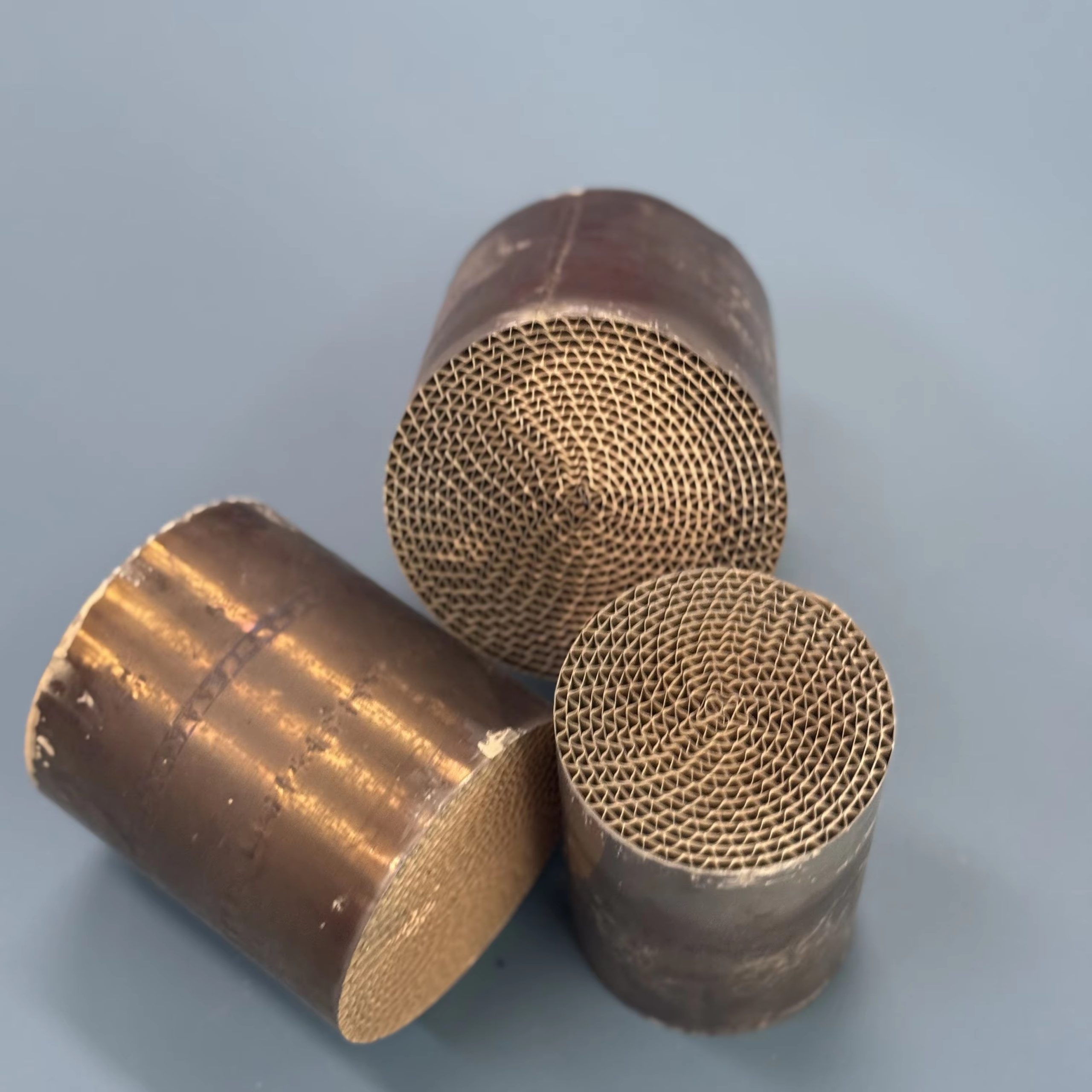

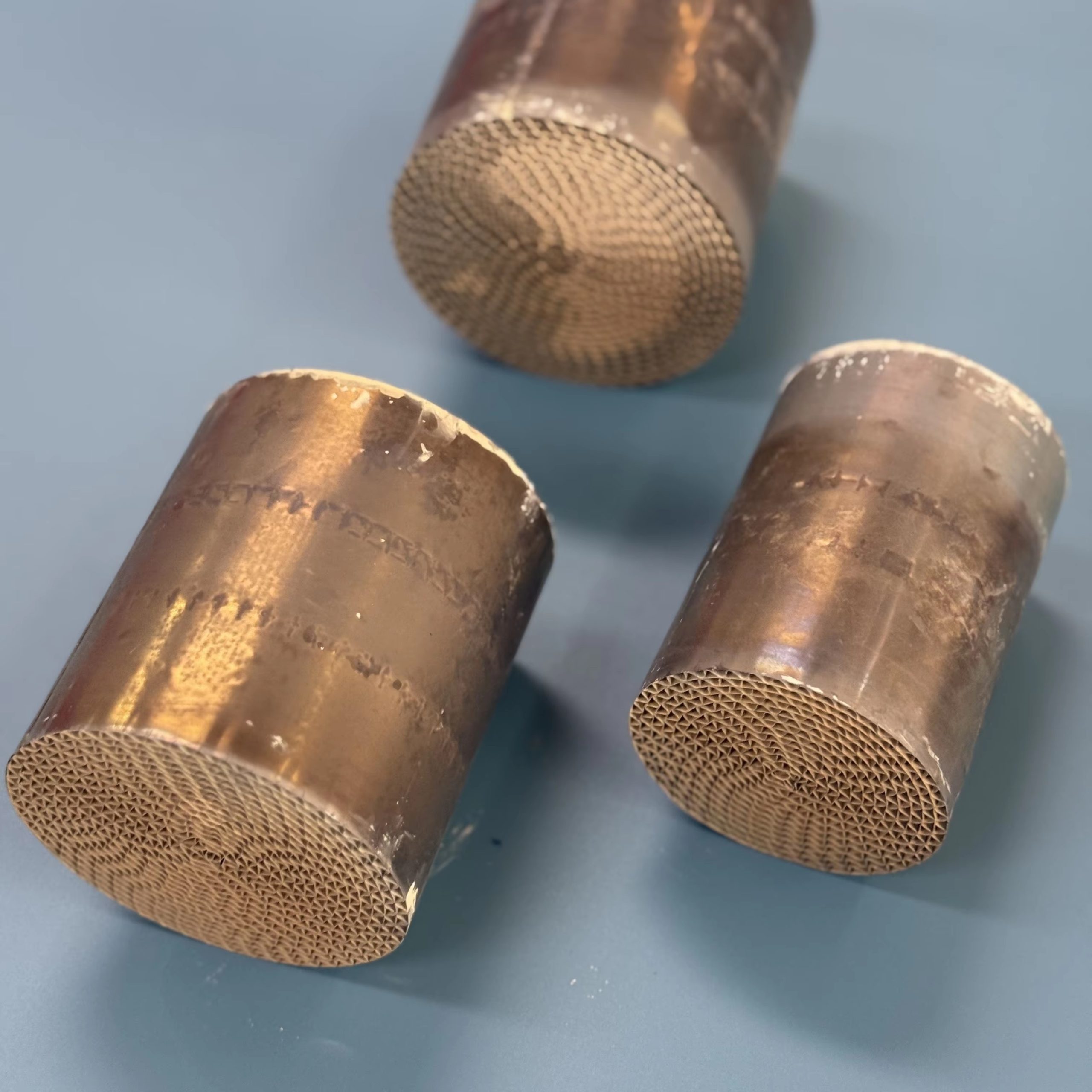

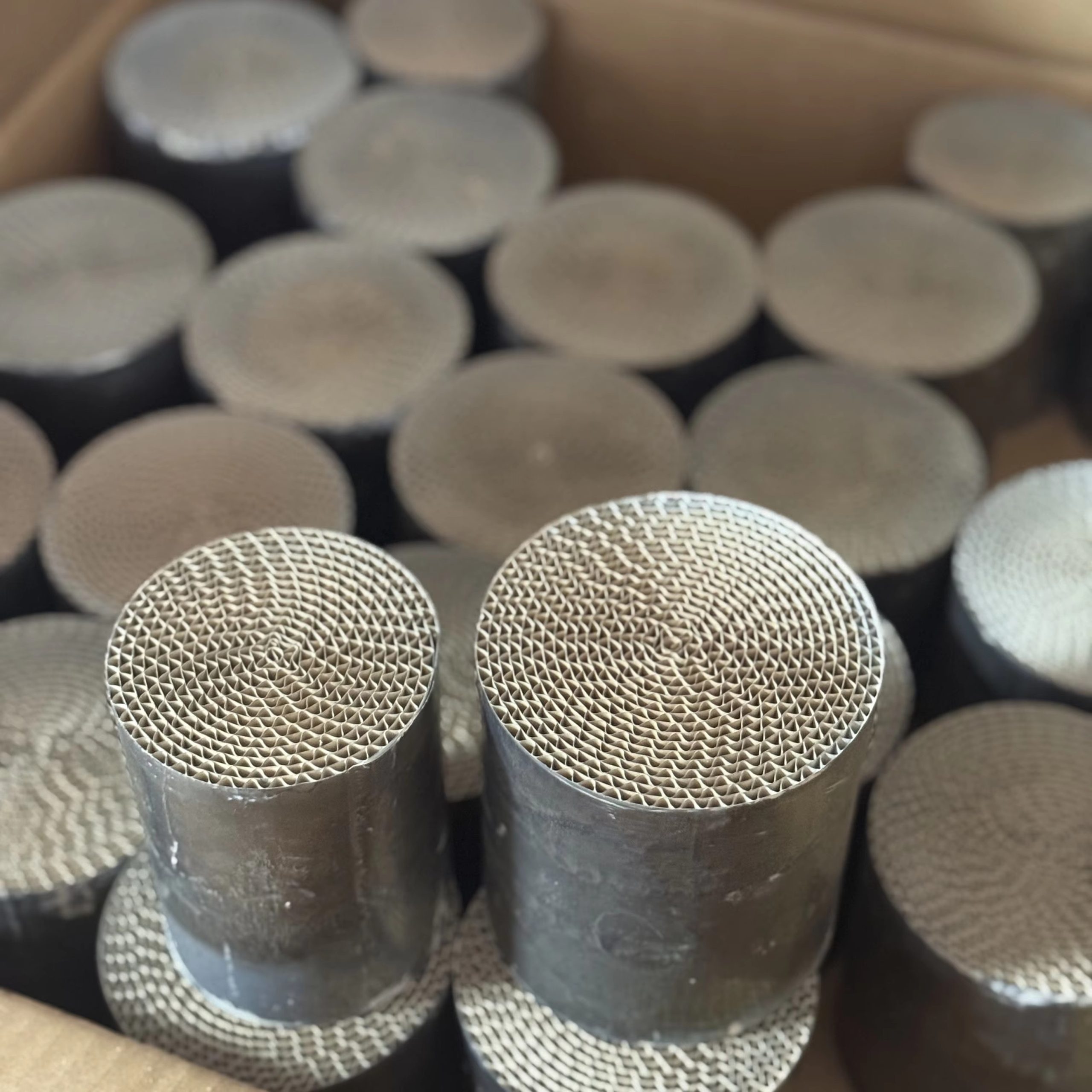

Metal Exhaust Catalytic Converter Metallic Honeycomb Substrate
Advantages
Compared with ceramic substrates, metal substrates offer distinct advantages:
1. Superior gas purification efficiency.
2. Better thermal conductivity and faster heating.
3. Lower back pressure.
4. Larger effective surface area.
5. Enhanced catalytic capacity.
6. More compact and flexible design.
7. Thinner wall thickness.
8. Higher mechanical strength.
9. Superior resistance to thermal shock and thermal fatigue.
10. Extended service life.
Working principle and usage
2. Metallic substrate for small engine.
Company Profile
Jiangsu Zitai Co.Ltd
1.A professional Team!
Zitai have a full service include ceramic forming,molding design and development, precision machining and precision detection technology and we have a professional techincal teams and our engineer works in this line more 20years. We are good at listening and understanding your real needs and can provide exclusive personal customization!
2.A good listener!
Take the good faith as the book, strives for the survival by the quality, serves the quality to win the customer trust,maitain the spirit of innovation and development, thoughtful after-sales service enterprises as the goal.
3.Professional production equipment
We have dozens of professional equipment in line with EU production standards.Can be customized with your different production needs, different materials for production. Due to the high operation of the equipment, the production cycle can be greatly shortened.
4.Rigorous inspection process
We will be in the production of products after the professional technical personnel for product quality review and tolerance measurement. To ensure that the products sent to your hands are the best quality products.
FAQ
Q：Are you a manufacturer or trading company ?
A：We are professional manufacturer and supplier in China.we have a professional technical team in this line.
Q：What’s the MOQ?
A：There is no limit on quantity, the quantity is more,the price is better.
Q：Do you accept customized dimension?
A：Yes, we can produce ceramic parts per customer’s drawing.
Q：Can you supply a free sample?
A：We can supply a free sample to you within 3 days when we have an exsited size in our stock and the freight is collect.
We always send the sample before the mass production and keep the quality of the bulk goods is consistent with that of the sample.
Q：What about your after-sales service?
A：We have strict and professional QC team. We are always offering qualified products.
If the quality can not meet requirement, we will reproduce the qualified products or refund the payment.
Q：What is your payment term?
A：We mainly accept T/T, West Union, Credit card and L/C at sight.
Paypal will be available in the near future.
